Spa Electrics WN2RX

  • Suitable for the replacement of existing WN250 models
  • Innovative Detachable Plug, easy connection and disconnection of light
  • Interchangeable coloured lenses available in Blue, Green, Red, Magenta and Clear
  • Choice of Rim colours including White, Grey or Black to match your pool or spa interior. A Stainless Steel Dress Ring is available as an optional extra
  • Compact diameter 164mm for concrete or 174mm for fibreglass installation
  • Recessed design for minimal projection into the pool, only 18mm for concrete and 22mm for fibreglass installation
  • Extra low voltage - High quality 12 volt, 100 watt tungsten-halogen globe with ceramic connector
  • Slotted rim allows water to flow around the light eliminating stagnant water and to aid in cooling
  • Light locked into position with bayonet tabs for secure installation
  • Direct Connect electrical connection eliminates possible sources of water entry
  • IPX8 waterproof rating
  • Designed and manufactured in Australia
  • Patented Design

Installation Manual







Light Sources: Halogen / Tungsten globe Colour: Warm White (3000 K typical)
Globe Life (Rated): 1200 hrs IP Rating: IPX8
Overall Diameter: 164mm - 6.45" (Concrete) 174mm - 6.85" (F/G) Intrusion into Pool: 18mm - 0.7" (Concrete) 22mm - 0.82" (F/G)
Lens Options: Blue / Clear / Green / Magenta / Red Rim Options: White / Grey / Black
Construction: UV Stabilised Polycarbonate / Glass filled PBT
Installation Types: Replacement of WN250 models
Voltage: 12v AC Current: 8.3A
Wattage: 100W Warranty: 12 Month Manufacturer's Warranty
Cable Specifications: N/A Standard Inclusions: 316 Marine Grade SS Fasteners
Direct Connect Plug Top System
Thermal Protection
Recommended Transformer: LV100 (Single Light)
LV200 (Dual Lights)
Ambient Operating Temperature: 5 °C to +40 °C
Return to Top

CODES DESCRIPTIONS FURTHER INFORMATION
WN2RX REPLACEMENT LIGHT FOR WN250 + PLUG TOP KIT

Interchangeable Coloured Lenses: Blue, Green, Red, Magenta, Clear
Rim Colours: Black, Grey, White

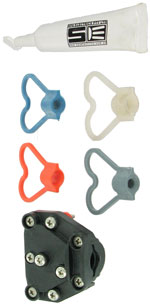

WN2803 PLUG TOP KIT



WN201 CLIP ON LENS Interchangeable Coloured Lenses: Blue, Green, Red, Magenta, Clear WN202 FIXED LENS
WN204 RIM WN205 BODY & TERMINAL COVER
WN207 Spa Electric WN250 Niche Light Globe & Connector 12V
Does not include WN203 Gasket
WN210 REFLECTOR
WN211 STAINLESS STEEL DRESS RING - CONCRETE WN211F STAINLESS STEEL DRESS RING - FIBREGLASS
WN214 NICHE LIGHT PART REPAIR KIT 12v 100w


WN201 - Clip on Coloured Lens, Colours Available: Blue, Green, Red, Magenta, Clear WN202 - Fixed Lens WN204 - Rim, Colours Available: Black, Grey, White WN205 - Body & Terminal Cover
WN207 - Spa Electric WN250 Niche Light Globe & Connector 12V
Does not include WN203 Gasket
WN210 - Reflector WN211 - Stainless Steel Dress Ring - Concrete WN211F - Stainless Steel Dress Ring - Fibreglass

WN214 - Niche Light Part Repair Kit 12v 100w WN215 - Niche Light Part Repair Kit 12v 100w with Glass & Coloured Lens WN2803 - Plug Top Kit for WN250 Series
