Zodiac Tri-PRO Water Care System |
 |
|
TRi-pH Water Care System Features
- Generator cell provides optimal performance, with better chlorination.
- Automated pH down feeding system keeps your pools acid balance stable.
- Automated ACL (active chlorine level) detection which only allows the electrolytic cell to operate only when needed thus avoiding over chlorination and extending product life.
- Reverse polarity cell prevents calcium build up and keeps maintenance to an absolute minimum..
- Easy-to-use one touch control unit.
- Seamless connection to Zodiac Aqualink control systems for a fully automated pool experience.
Zodiac TRi-PRO Advantages
TRi-PRO defines a new era in water care products.
Loaded with features and user friendly operations, TRi-PRO will allow you to enjoy your pool more. The automated pH balance functions means you no longer need to manually add acid to your pool water, thereby eliminating potential acid spill dangers.
Automated ACL detection prevents the cell from over chlorinating eliminating potential hazards. An intelligent control centre and a high performance chlorine generating cell provides a sophisticated system that will keep your pool water healthy and in balance.
|
Zodiac TRi Intelligence

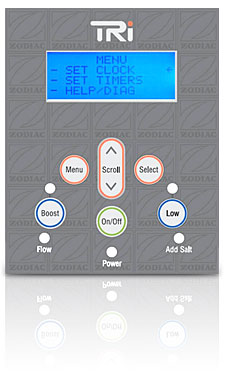

The TRi control system features a menu that provides a series of solutions if something should go wrong. This onboard troubleshooting guide allows you to fix many issues without referring back to the user manual.
|
| |
 Brochure
Product Manual
Spare Parts |
| |
|
 |
Zodiac TRi & pH Balance |

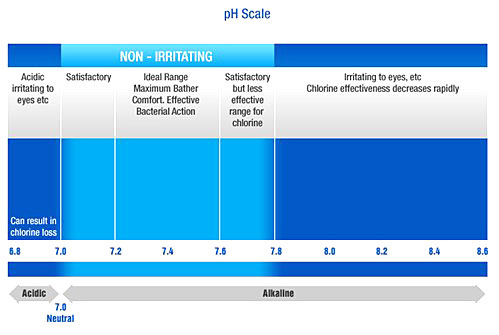

pH balance is the single most important element of pool water chemistry.
pH measures the acid or base condition of the water. The pH scale provides information that lets you know how effective the sanitiser is in the water. A high pH means that your chlorine is ineffective this then leads to the strong 'chlorine smell' known as chloramines.
Why is this important?
If your protective products aren't doint their job properly, your pool can be over-run by nasty micro-organisims. Secondly, unbalanced water may be corrosive, resulting in damage to the equipment in your pool.
To keep your sanitiser effective a pH level of between 7.2 and 7.6 is required, TRi-pH will monitor this and will correct it automatically. |
| |
|
 |
Active Chlorine Level Explained |

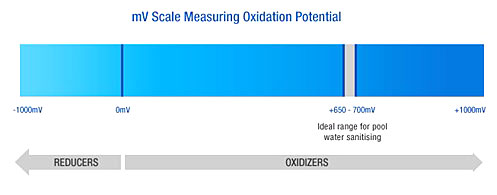

ACL or Active Chlorine Level is what is used to describe the actual killing potential of the sanitiser in your pool water. This is often referred to as ORP (oxidation Reduction Potential) which measures the electrical conductivity of the water, which generally for sanitised water is around 650-700mV.
As chlorine (or other sanitisers) are used up they sometimes present an overall chlorine reading in the water, even though they have lost their potential to kill any harmful bacteria.
The ACL function on TRi-PRO will only detect the active chlorine to keep your pool in great health.
|
| |
|
Zodiac TRi-PRO Specifications |
| Models |
Compact - Mid - Large |
| Chlorine production rate grm/hr |
18 - 25 - 36 |
| Working Salt Level |
4,000ppm |
| Maximum Salt Level |
35,000ppm (sea water) |
| Auto output select |
Yes (Super and Low) |
| Plumbing capacity |
40mm and 50mm |
| Power Requirements |
240V |
| Vessel Dimensions |
320mm (L) x 110mm (W) x 155mm (H) |
| Power Pack Dimensions |
330mm (L) x 110mm (W) x 310mm (H) |
| Warranty |
5yrs power pack and electrode |
|
| |
|
