Zodiac Titan Series Fibreglass Sand Pool Filters

Brochure

Product Manual

Spare Parts Diagram


Zodiac Titan Series Fibreglass Sand Pool Filters have been specifically designed for Australian Conditions. Their highly efficient and robust design makes them suitable for small to large residential pools.

Suitable for use with the following models of Zodiac pump: Titan Series, FloPro Series, FloPro eSeries

Available in the following models: 21”, 25”, 28”, 32”, 36”

Features & Benefits:

  • Durable construction to extend the life of the filter. The body of the unit consists of two layers: an inner tank is made from food grade polyethylene, and an external tank from strong woven fibreglass.
  • Features an ergonomic palm shape handle for easy operation.
  • Large sight indicator glass for clear backwash inspection.
  • Oil filled pressure gauge for easy inspection of operating pressure.
  • Quality inspected and factory pressure tested at 400kpa (NB: Maximum working pressure 250kpa).
  • Suitable for use with Zodiac Crystal Clear glass media
  • 10 Year Warranty on the Tank and 1 Year Warranty on all other components

Backwashing a Sand Pool Filter Video

Our presenter will provide a step-by-step explanation of backwashing a sand filter at around the 3 minute mark in the video below.

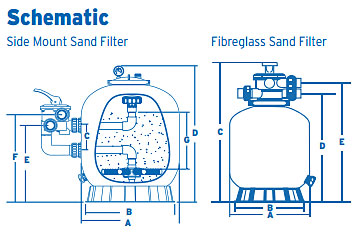

Zodiac Titan Series Fibreglass Sand Pool Filters Specifications

Model
Number
Size
(Inches)
A mm
B mm C mm D mm E mm Valve
Connections
Maximum
Flow rate
Silica
sand (kg)
Diamond
Brite
ZT500 21 535 500 845 670 730 40 mm 185LPM 85kg 64kg
ZT650 25 635 500 950 775 835 40 mm 260LPM 145kg 109kg
ZT700 28 710 500 1020 845 905 40 mm 325LPM 210kg 158kg
ZT700B 28 710 500 1092 877 960 50 mm 336LPM 215kg 162kg
ZT800 32 800 753 1200 1002 1085 50 mm 415LPM 355kg 267kg
ZT900 36 900 753 1300 1090 1172 50 mm 520LPM 470kg 353kg
