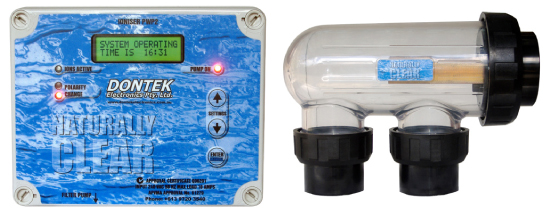

The PWP2 is a swimming pool, spa and pond controller that controls the filter pump run times and
current output to the Copper and Silver Alloy Electrodes. The clock can be set to run for single or dual
run times and will remember times if the power is switched off for a period of 10 days.
Ionisation
The PWP-2 uses a process of passing a controlled current through the water between the copper and
silver alloy electrodes. This process called electrolysis enables copper and silver ions to enter the
water. The copper works to inhibit algae growth and the silver as an aid to fighting bacteria.
Controller Mounting
Find a suitable location to mount the control box. As with all pool equipment, it should be installed
out of direct weather and no closer than 3 meters from the water’s edge. Lift up the two mounting
tabs and use two appropriate screws to mount the control box to the wall, keeping in mind that the
power cable is 1.8m long and should be plugged directly into a general power outlet, not into an
extension lead. Note that direct sunlight will fade the display over a period of time.
