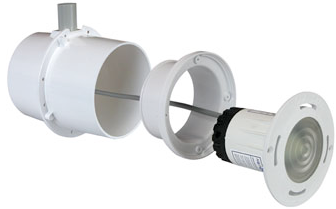

Aqua-Star Halogen for Concrete Pools
 Aqua-Quip Flush Mounted Lights for
Concrete -
Parts & Code

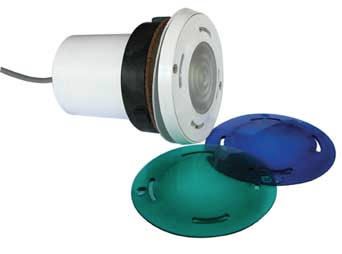

Aqua-Star Halogen for Fibreglass Pools
Aqua-Quip Flush Mounted Lights for
Fibregalss -
Parts and Code
|
Aqua-Star Halogen Flush Mounted Pool Lights are secured inside a recessed housing in the pool wall making them stylish, modern and totally unobtrusive.
The lights are fitted with a 12v 50w MR16 halogen lamp and are supplied with quick-fit blue and green lenses. Easily enhanced with the addition of the mirror polished 316 Stainless Steel Trim Ring Kits.
The Aqua-Star Flush Mounted pool lighting system combines many unique features resulting in a spectacular, reliable lighting system that is user friendly and easy to install.
The lights are compact, stylish and modern making them ideal for all types of water features; spas, fountains, water falls, beach areas, and catch tanks.
The lights are extra low voltage and are designed and made in Australia.
Aqua-Quip Aqua-Star Brochure
Aqua-Quip Aqua-Star Halogen Fibreglass Pools Manual
Aqua-Quip Aqua-Star/Evo2 Replacement Light Kit Manual
Aqua-Quip Transformers Installation Manuals
Aqua-Quip Aqua-Star Halogen Concrete Pools Manual
|
Reliable Australian-made toroidal-style transformers run quieter, cooler and are 35% more efficient than traditional style transformers.
Aqua-Quip Transformers are robust and reliable and are available in a variety of voltages. 24v and 32v transformers are for replacements only and are not to be used on new pool construction. Transformers comply with AS61558.2.6, ensure they are installed to AS/NZS 3000:2007.
Aqua-Quip Transformers are simple to install, are available in hard-wired and plug-in models and deliver a safe extra low voltage supply to operate either LED or halogen pool lights. For new pools each underwater light must be supplied from an individual transformer (or individual winding on a transformer having a number of secondary windings). To facilitate the simple installation of multiple lights in a single pool Aqua-Quip supplies transformers with either 2 x secondary 50va outputs (#APL502) or 4 x secondary 50va outputs (#APL504). The circuit capacity of the outputs must not be exceeded.
APL502 runs up to 2 x 50va lights.
APL504 runs up to 4 x 50va lights.
|
Click here to download the Transformer Brochure
Weather-proof (IP65) Range
240V / 12V, 100VA
240V / 12V, 200VA
240V / 22V, 150VA
240V / 32V, 150VA
Splash-proof (IP64) Range
240V / 12V, 100VA*
240V / 12V, 200VA*
*supplied with 3-pin plug |
