Spa Electrics EMRX |
|
- Recessed design for minimal projection into pool
- Protrudes only 25mm into pool
- Pool cleaner friendly
- Compact diameter 120mm for fibreglass
- Available in award winning Ceramic Light Engine (LED)
- Latest design combined with our DuoSink® &PulseWave® technology
- L.E.D. life of 50,000hrs (rated)
- Kind to the environment, operating on approximately 90% less energy than a normal 100watt halogen light
- Direct Connect electrical connection eliminates possible sources of water entry
- Slotted rim and patented Heatsink design allows water to directly flow heat sink dramatically increasing cooling capabilities
- Designed and manufactured in Australia
- Rated to IPX 8
- State of the art control system using DuoSink® & PulseWave® technology
- Detachable plug top / cable for ease of servicing
- Built in self-diagnostics

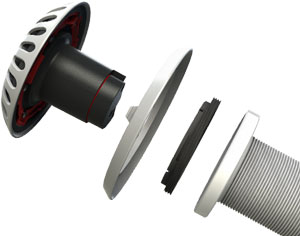

- Patented 'Click-Fit' bayonet locking system - No fixing screws
- Ceramic Light Engine available in Blue, White and Multi-colour
 Brochure Installation Manual Photometrics
|
|
|
|
|
|
| Light Sources: |
Ceramic Light Engine (LED) |
Lens Options: |
N/A |
| Colour: |
White (4000 K)
Blue (465 nm)
RGB (Multi-Colour) |
Rim Options: |
White (Std) / Grey / Black |
| Globe Life: |
70% @ 50,000 hrs
|
IP Rating: |
IPX8 |
| Construction: |
UV Stabilized Polycarbonate / DuoSink External Heatsink
|
Installation Types: |
Retro (Refit) Suitable for Replacing Most Small Niche Fittings |
| Voltage: |
12v AC |
Current: |
0.8A |
| Wattage: |
10W |
Warranty: |
12 Month Manufacturer's Warranty |
| Cable Specifications: |
N/A |
Standard Inclusions: |
316 Marine Grade SS Fasteners
Direct Connect Plug Top System
Duosink - External Heatsink
Click Fit Screwless Attachment System
Thermal Protection |
| Recommended Transformer: |
LV25 (Single Light)
LV50 (Dual Lights) |
Ambient Operating Temperature: |
5 °C to +40 °C |
| |
| |
|
|
|
| CODES |
DESCRIPTIONS |
FURTHER INFORMATION |
| EMRX SINGLE |
1 SINGLE COLOUR LIGHT + RETRO MOUNTING KIT + RESISTOR BOX |
Colours Available: Blue, White |
| EMRX MULTI |
1 MULTI COLOUR LIGHT + RETRO MOUNTING KIT + RESISTOR BOX |
Multi-coloured |
| CODES - Spare Part |
|
|
| EM03 |
TERMINAL SEAL KIT |
|
|
| |
|
|
|
