Lighting > LED Lighting > Spa Electrics >Photon GK Series
|
|
Unable to find what you are looking for? Send us an email
in Contact Us for a quick reply.
|
|
|
Spa Electrics Photon GK Series |
 Installation Manual
Multi Plus Manual
Multi Colour Manual
| Light Sources: |
Ceramic Light Engine (LED) |
| Available Colours |
MULTI PLUS |
Multi Colour |
| |
Blue (465nm) |
White (4000K) |
| |
Green (525nm) |
|
MULTI PLUS
Compatibility |
Wall Switch Operation |
| |
iRIS Lighting Controller |
| |
AstralPool Connect 10® |
| |
Pentair IntelliTouch® / EasyTouch® |
| |
Zodiac/Jandy RS (REV R - Current) |
| |
Zodiac TRi® |
| IP Rating |
IPX8 |
| Installation Types |
Concrete / Fibreglass |
| Voltage |
12v |
| Wattage |
12watts |
| Ambient Operating Temperature |
5 °C to +40 °C |
| Warranty |
12 Month Manufacturers Warranty |
| |
|
|
 |

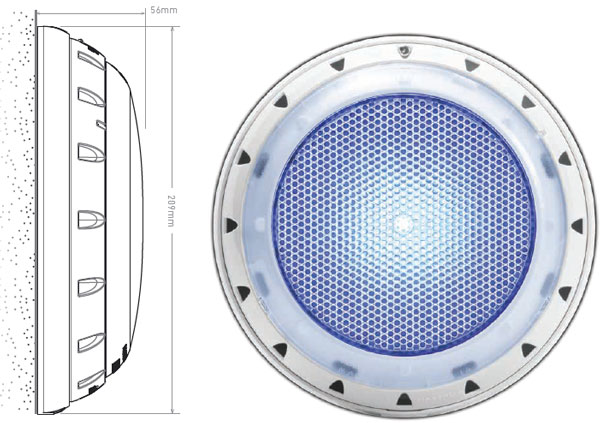

The Photon GK Series is a compact but powerful surface mounted LED pool light. Suitable for concrete, fibreglass and vinyl pools, the Photon GK series uses advanced LED technology coupled with a robust construction and superior heat management.
- MULTI PLUS Now Available
- iRIS Compatible
- High intensity Ceramic Light Engine (LED) Technology
- Market leading brightness and efficiency
- Available in Blue, Green, White, Multi Colour Or MULTI Plus

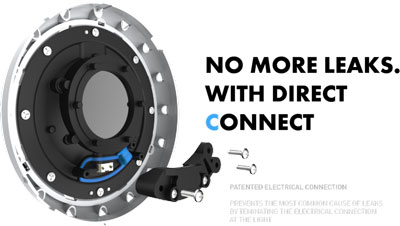

- Direct-Connect Patented detachable electrical connection
- Choice of rim colours including, White, Grey or Black
- Suitable for Concrete and Fibreglass pools
- IPX8 waterproof rating
- Designed and manufactured in Australia
|
|
Photon GK SERIES |
 |
CONCRETE POOLS
| Part Number |
Description |
| GKC L12 L1 |
1x GKC LIGHT + CONCRETE MOUNTING KIT |
| GKC L12 L2 |
1x GKC LIGHT + CONCRETE MOUNTING KIT + 20M CABLE |
| GKC L12 K1 |
1x GKC LIGHT + CONCRETE MOUNTING KIT + 20M CABLE + LV25 TRANSFORMER |
| GKC L12 K2 |
2x GKC LIGHT + CONCRETE MOUNTING KIT + 20M CABLE + DUAL LV50 TRANSFORMER |
FIBREGLASS POOLS
| Part Number |
Description |
| GKF L12 L1 |
1X GKF LIGHT + FIBREGLASS MOUNTING KIT |
| GKF L12 L2 |
1X GKF LIGHT + FIBREGLASS MOUNTING KIT + 20M CABLE |
| GKF L12 K1 |
1X GKF LIGHT + FIBREGLASS MOUNTING KIT + 20M CABLE + LV25 TRANSFORMER |
| GKF L12 K2 |
2X GKF LIGHT + FIBREGLASS MOUNTING KIT + 20M CABLE + DUAL LV50 TRANSFORMER |
|
|
|
|
|
|
|
|
