| Aqua-Quip Evo2 LED Flush Mounted Lights for New Pools |

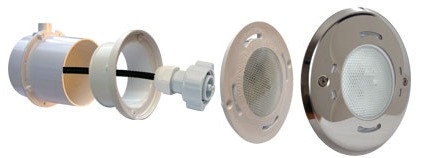

Above: Evo2 LED Lights for Concrete Pools
|
Introducing the new Evo2 pool lighting system, the latest advancement in pool lighting technology.
The Evo2 pool lighting system combines many unique features resulting in a spectacular, ultra reliable lighting system that is user friendly and easy to install.
These LED lights are available in fixed colour white, blue, green and multi-colour with multiple colour changing programs.
The beauty of the Evo2 is that the lights sit flush with the pool wall making them totally unobtrusive. The lights are stylish and modern, making them ideal for all types of water features, spas, fountains, waterfalls, beach areas, ponds and catch tanks.
|
Above: Evo2 LED Lights for Fibreglass and Vinyl Pools |
The elegance of the lighting system can be enhanced with the addition of the optional stainless steel trim ring, creating some spectacular visual effects. The Evo2 system is supplied with the latest generation LED technology and industrial strength transformer to ensure maximum light output. In addition, Evo2 lights are energy efficient and have a rated life of up to 50,000 hours. The entire system is extra low voltage to ensure safety at all times.
Fibreglass and Vinyl Pools

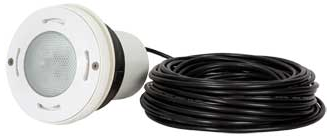

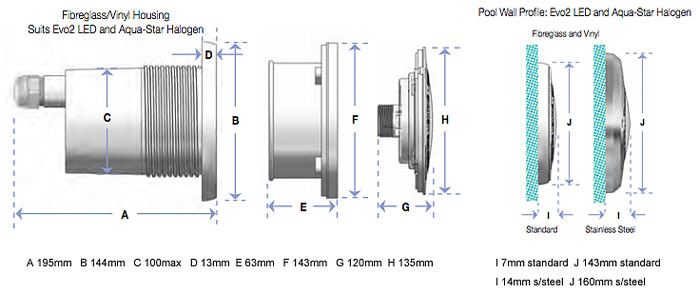

Evo2 LED Pool Lights for Fibreglass and Vinyl Pools fit through a 4” (102mm) hole and are supplied with the Quick Connect Cable pre-fitted to the pool light. The pool light is supplied fitted inside the fibreglass/vinyl housing. The housing is factory fitted with 1 metre of cable wound up inside. Supplied with lock nut and gaskets, ready to install. Stainless Steel Trim Ring Kits are available as an optional extra.
|
| |
|
| Aqua-Quip Evo2 LED Flush Mounted Lights for Existing Pools |
|
Evo2 LED Flush Mounted Retro-Fit Pool Lights allow a simple upgrade from Aqua-Star Halogen and Spectrum MK1 Flush Mounted lights. Available in Fixed Colour and Multi-Colour Options.
Pool light mounts into the existing Aqua-Star housing.
The Evo2 LED Retro Fit Light is supplied with a factory-sealed light and a Quick Connect Plug Kit.
The plug kit connects to the existing cable and is then connected to the rear of the light by tightening the supplied lock nut.
|
| |
|
Key Points:
- Stylish, compact and modern design
- Detachable cable for easy installation
- Super bright, energy efficiet, next generation LED technology
- Made in Australia to all relevent Australian standards and regualtions
- suitable for concrete, vinyl, figreglass and modular vinyl pools and spas
|
Specifications
| Nominal Supply Voltage |
12V AC 50/60 Hz |
| Voltage Tolerance |
+20%, -20% |
| Protection Rating |
IPX8 (to 2.0m depth) |
| Temperature Range |
-10°C ~ +40°C water temperature |
| Power Consumption |
White, blue and green = 8 VA |
| Power Consumption |
Spectrum III Multi Colour = 16 VA maximum |
| Lamp Life |
>50,000 hours |
| Light Output (typical) |
White-550 lumens, blue-180 lumens, green-500 Lumens |
| Fault Protection |
Power-cycle “run dry” thermal cut-out. Voltage transient clamping. |
| IEvo2 LED Lights must only be operated underwater as they are water-cooled. |
|
 |
| |
|
EVO2 LED FLUSH MOUNTED POOL LIGHTS - Fibreglass
with Quick-Connect Cable. Transformers are not included.
| Code |
Descriptions |
| ASN 201 |
20m |
Blue |
FIBREGLASS |
| ASN 231 |
30m |
Blue |
FIBREGLASS |
| ASN 202 |
20m |
White |
FIBREGLASS |
| ASN 232 |
30m |
White |
FIBREGLASS |
| ASN 203 |
20m |
Green |
FIBREGLASS |
| ASN 233 |
30m |
Green |
FIBREGLASS |
| ASN 204 |
20m |
Multi |
FIBREGLASS |
| ASN 234 |
30m |
Multi |
FIBREGLASS |
|
EVO2 LED FLUSH MOUNTED POOL LIGHTS - Concrete
with Quick-Connect Cable. Transformers are not included.
| Code |
Descriptions |
| ASN004 |
20m |
Multi-coloured |
Concrete |
| ASN034 |
30m |
Multi-coloured |
Concrete |
| ASN001 |
20m |
Blue Lens (Fixed) |
Concrete |
| ASN031 |
30m |
Blue Lens (Fixed) |
Concrete |
| ASN002 |
20m |
White Lens (Fixed) |
Concrete |
| ASN032 |
30m |
White Lens (Fixed) |
Concrete |
| ASN003 |
20m |
Green Lens (Fixed) |
Concrete |
| ASN033 |
30m |
Green Lens (Fixed) |
Concrete |
|
RETRO-FIT LIGHTS FOR EXISTING POOLS - Fibreglass
FLUSH MOUNTED. Transformers are not included.
| Code |
Descriptions |
| ASN221 |
EVO2 LED Replacement Light Kit |
Blue Lens
No Lead |
| ASN222 |
EVO2 LED Replacement Light Kit |
White Lens
No Lead |
| ASN223 |
EVO2 LED Replacement Light Kit |
Green Lens
No Lead |
| ASN224 |
EVO2 LED Replacement Light Kit |
Multi-coloured
No Lead |
| ASL210 |
Aqua Star Replacement Light Kit -
Halogen 50W c/w Blue & Green Lens |
| ASN110 |
EVO2 Extension Cable and Joining Kit
(Black 1mm) |
| ASN115 |
EVO2 Extension Cable and Joining Kit
(Grey 1.5mm) |
|
RETRO-FIT LIGHTS FOR EXISTING POOLS - Concrete
FLUSH MOUNTED. Transformers are not included.
| Code |
Descriptions |
| ASN101 |
EVO2 LED Replacement Light Kit |
Blue Lens (Fixed)
No Lead |
| ASN102 |
EVO2 LED Replacement Light Kit |
White Lens (Fixed)
No Lead |
| ASN103 |
EVO2 LED Replacement Light Kit |
Green Lens (Fixed)
No Lead |
| ASN104 |
EVO2 LED Replacement Light Kit |
Multi-coloured
No Lead |
| ASL010 |
Aqua Star Replacement Light Kit - Halogen 50W c/w Blue & Green Lens |
|
EVO2 LED LIGHTS ONLY - Fibreglass
| Code |
Descriptions |
| ASN 491 |
Blue LED EVO2 Light Only |
FIBREGLASS |
| ASN 492 |
White LED EVO2 Light Only |
FIBREGLASS |
| ASN 493 |
Green LED EVO2 Light Only |
FIBREGLASS |
| ASN 494 |
Multi Colour LED EVO2 Light Only |
FIBREGLASS |
|
EVO2 LED LIGHTS ONLY - Concrete
| Code |
Descriptions |
| ASN401 |
Blue LED EVO2 Light Only |
Concrete |
| ASN402 |
White LED EVO2 Light Only |
Concrete |
| ASN403 |
Green LED EVO2 Light Only |
Concrete |
| ASN404 |
Multi Colour LED EVO2 Light Only |
Concrete |
|
 Aqua-Quip Evo2 Brochure
Aqua-Quip Evo2 for Fibreglass Pools Installation & Specs
Aqua-Quip Evo2 Pool Lights - Parts and Code
Aqua-Quip Aqua-Star/Evo2 Replacement Light Kit Manual
Aqua-Quip Evo2 for Concrete Pools Installation & Specs
Aqua-Quip LED Programming Guide
Aqua-Quip Pool Lighting Guide
Aqua-Quip Evo2 Stainless Steel TrimRing Install |
EVO2 ACCESSORIES
| Code |
Descriptions |
| ASS256 |
Stainless Steel Trim Ring Kit (Figreglass) |
| ASS056 |
Trim Ring Kit - Stainless Steel (Concrete) |
| ASS116 |
Protective Cap For Housing (Red) |
| ASL051 |
Adjustable Dress Ring |
| ASL130 |
Plaster Cap for Dress Ring (Green) EVO2 Only |
|
