Aqua-Quip Surface Mounted LED Pool Lights |
 |

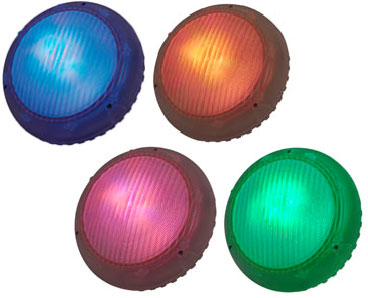

 Series LED Surface Mounted Pool Lights
|
|
Features:
• Quick-connect feature
• Amazing LED colours
• Variable voltage technology
• Energy efficient
• Universal mounting bracket
|
Series LED Surface Mounted Pool Lights for EXISTING pool |
 |
Upgrade your existing pool lights to Aqua-Quip without lowering the pool water level or changing the transformer.
Fixed Colour LEDs: super bright white, blue or green for maximum illumination.
Multi Colour LEDs: The advanced Spectrum IX technology allows the user to program their favourite mode.
Choose from a variety of scroll and flash modes or program your own favourite default colour by selecting from
the innovative Colour Palette Selection mode.
Variable voltage Technology: Allows LED Retro-Fit lights to be operated from voltages between 12v AC to 32v AC.
Aqua-Quip Surface Mounted Retro-Fit Lights are able to convert the following brands in concrete pools:
• Stroud Compact 150
• Stroud SM400
• Swimworld
• Waterco
• Filtrite
• Spa Electrics
• Poolrite
• Autumn Solar, Questa, Chameleon |
Series LED Surface Mounted Pool Lights for NEW CONCRETE Pools |
Equip your new concrete pool with amazing LED lighting technology.
Choose from either 20 metre or 30 metre cable length.
|
Aqua-Quip’s latest innovation for Surface Mounted Retro Fit Pool Lights is the new Quick-Connect Plug Kit and Back Plate. Plug kit connects up to a wide variety of cable thicknesses and provides full detachable cable functionality. Newly designed back plate polishes the overall look of the light.
|
Step 1. Fit the plug kit to the existing cable. |
Step 2. Push into rear of light and tighten screws. |
| |
Specification
| Code |
Description |
| Power Requirement |
12v ~ 32v AC 50/60Hz |
| Power Consumption – (Fixed Colour LEDs) |
Max 16VA at all voltages 12v ~ 32v |
| Power Consumption – (Multi Colour LEDs) |
Max 22VA at all voltages 12v ~ 32v |
| Rated Lamp Life |
>50,000 hours |
| Light Colour: White >5,000K, Blue 475nm, Green 525nm |
|
| |
Surface Mounted LED Pool Lights
| Code |
Description |
| LES 001 |
20m |
Fixed Colour Blue LED |
| LES 002 |
20m |
Fixed Colour White LED |
| LES 003 |
20m |
Fixed Colour Green LED |
| LES 004 |
20m |
Multi Colour LED |
|
Transformers
| Code |
Description |
| APL 502 |
12 Volt |
2 x 50VA Outputs – Hardwired |
| APL 504 |
12 Volt |
4 x 50VA Outputs – Hardwired |
| APL 512 |
12 Volt |
2 x 50VA Outputs – Plug In |
| APL 514 |
12 Volt |
4 x 50VA Outputs – Plug In |
|
 Aqua-Quip QC Surface Mounted Lights Brochure
Aqua-Quip QC Concrete Lights Installation Manual
Aqua-Quip QC Retro-fit Lights Installation Manual
Aqua-Quip LED Programming Guide
Aqua-Quip Pool Lighting Guide
|
