| 1 AXV436LG |
2 AXV439 |
3 AXV070 |
4 AXV301 |
Hayward Pool Vac Ultra
Top Light Grey |
Hayward Pool Vac Ultra
Body White |
Hayward Pool Vac Ultra
Cone Gear Clear |
Hayward Pool Vac Ultra
Intermediate Gear |
| |
|
|
|
 |
|
|
|
| 5 AXV309 |
6 AXV068 |
7 AXV303 |
8 AXV066A |
Hayward Pool Vac Ultra
Intermediate Gear Shaft |
Hayward Pool Vac Ultra
Spindle Gear Screw |
Hayward Pool Vac Ultra
Spindle Gear |
Hayward Pool Vac Ultra
Spindle Gear Busing |
| |
|
|
|
| No Photo |
No Photo |
No Photo |
|
| 9 AXV306 |
10 AXV060WH |
11 AXV065P |
12 AXV064A |
Hayward Pool Vac Ultra
Cone Gear Bushing |
Hayward Pool Vac Ultra
Upper Middle Body |
Hayward Pool Vac Ultra
Upper
Body Screw 6 pack |
Hayward Medium
Turbine Drive Gear |
| |
|
|
|
 |
No Photo |
 |
No Photo |
| 13 AXV062C |
14 AXV009A |
15 AXV408P |
16 AXV051AWH |
Hayward Pool Vac Ultra
Medium Turbine |
Hayward Medium Turbine Case
with Axle – No Longer Available |
Hayward Pool Vac Ultra
Gear Box Assembly Concrete |
Hayward Pool Vac Ultra
Screen White |
| |
|
|
|
| No Photo |
No Photo |
No Photo |
No Photo |
| 17 AXV054P |
18 AXV050CWH |
19 AXV429WHP |
20 AXV057P |
Hayward Pool Vac Ultra
Float set |
Hayward Pool Vac Ultra
Lower Middle Body White |
Hayward Pool Vac Ultra
Bumper Assembly |
Hayward Pool Vac Ultra Middle
Body Screw 6 pack |
| |
|
|
|
| No Photo |
 |
No Photo |
 |
| 21 AXV313 |
22 AXV031B |
23 AXV230DWH |
24 AXV434WHP |
Hayward Pool Vac Ultra
Lower
Body Screw 4 pack |
Hayward Pool Vac Ultra
Flap Adjuster |
Hayward Pool Vac Ultra
Lower Body
Open White |
Hayward Pool Vac Ultra
Flap Kit White
(includes
2 flaps, front and rear springs) |
| |
|
|
|
| No Photo |
No Photo |
 |
 |
| 25 AXSCR4008 |
26 AXV016P |
27 AXV604WHP |
28 AXV414P |
Hayward Pool Vac Ultra Pod Screw Kit
(includes 2 screws and 2 washers) |
Hayward Pool Vac Ultra Pod Plug
6 pack – No Longer Available |
Hayward Pool Vac Ultra Wing Kit White |
Hayward Pool Vac Ultra Shoe Set of 4
Clear Concrete Large |
| |
|
|
|
 |
 |
 |
 |
| 29 AXV413P |
30 AXV014CP |
31 AXV014SP |
32 AXV014FNP |
Hayward Pool Vac Ultra Shoes
set of 4
Cork Vinyl Wide |
Hayward Pool Vac Ultra Shoes
set of 4
Ceramic suit Tiled Pool |
Hayward Pool Vac Ultra Shoes
set of 4
Slotted Santoprene |
Hayward Pool Vac Ultra Shoes
set of 4
Cork Fibreglass & Vinyl |
| |
|
|
|
| No Photo |
No Photo |
No Photo |
 |
| 33 AXV314P |
34 AXV603 |
35 AXV603A |
36 AXV417WHP |
| Hayward Pool Vac Ultra Captive
Screw and Retaining Clip |
Hayward Pool Vac Ultra Fixed Access Cover Assembly for Concrete |
Hayward Pool Vac Ultra Fixed Access
Cover Assembly for Vinyl |
Hayward Pool Vac Pod Kit (includes
right and left pods and pod plugs) |
| |
|
|
|
 |
 |
 |
No Photo |
| 37 AXV055P |
38 AXW442 |
39 AXV09B |
40 V574PP |
| Hayward Pool Vac Ultra Main Turbine
Bearing set of 2 |
Hayward Pool Vac Ultra Skimmer Elbow |
Hayward Pool Vac Hose Adaptor |
Hayward Pool vac Flow Gauge |
| |
|
|
|
| No Photo |
 |
 |
 |
| 41 V574P |
42 V094P |
43 V305P |
44 AXV092 |
| Hayward Pool Vac Ultra Flow Gauge |
Hayward Regulator Valve |
Hayward Pool Vac Bumper Bar Kit |
Hayward Hose Connector |
| |
|
|
|
| No Photo |
 |
|
| 45 AXV699P |
46 AXV079P |
47 AXV079VP |
| Hayward Pool Vac A-Frame/ Bushing/Saddle Kit (includes two bushings, saddle,
keeper, screw and washer) |
Hayward Pool Vac Medium Turbine/Spindle
Gear Kit Vinyl (includes medium turbine, drive
gear bushing,
spindle gear, screw, medium
turbine axle,
intermediate gear,
intermediate gear axle) |
Hayward Pool Vac Ultra Medium Turbine/Spindle Gear Kit Vinyl
(includes medium turbine, drive gear, bushing,
vinyl
spindle gear, screw,
medium turbine axle,
intermediate
gear,
intermediate gear axle) |
| |
|
|
|
  |
  |
| 48 AXV621D |
49 AXV602P |
Hayward Pool Vac Universal A-Frame Kit New Style
(includes two A-frames and bushings, sddle, keeper,
two hex head pod screws and pod screw washers) |
Hayward Pool Vac Turbine & Bearing Kit – New
(includes main turbine and two turbine bearings)
Use with AXV601P A Frames only |
| |
|
|
|
 |
|
| 50 AXV622DPK |
51 AXV621DAT |

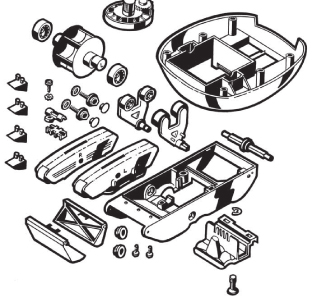

| Hayward Pool Vac Concrete Universal Propulsion/Conversion Kit
(includes access cover assembly, white lower body and screws, A-frames and bushings, saddle, keeper, screw and washer, white pods, hex head screws and washers, light grey flaps and springs, flap adjuster, turbine and bearings, pod shoes and
lower middle body, straight throat assembly) |
Hayward Pool Vac Universal A-Frame/Turbine Kit
(includes two soft roller A-frames and bushings, saddle,
keeper, main turbine and bearings, hex head pod
screws and pod screw washers) |
