Zodiac FloPro e3

FloPro e3

FloPro e3 Controller

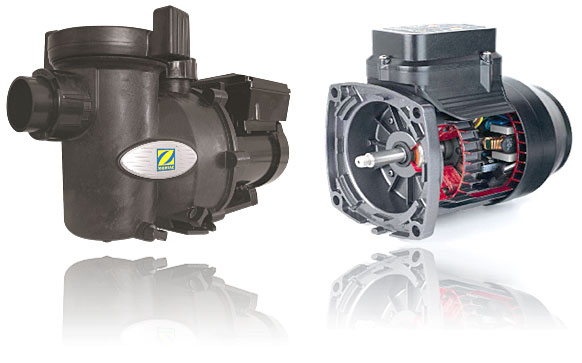

The Zodiac FloPro e3 is an economical, energy efficient, easy to use 3-speed variable pool pump specially designed for Australian conditions.

The FloPro e3 is engineered to be a simple to operate variable speed pool pump with the built-in intelligence of an economical motor saving you money on electricity. Built specifically for Australian conditions you can be ensured of a reliable and durable pool pump for your pool.

Zodiac FloPro e3 Features & Benefits:

• Ability to adjust the speed settings of the pool pump to ensure the optimum solution for any pool application.
• Utilizing less power than the average pool pump, the Zodiac FloPro e3 is both energy efficient and environmentally conservative.
• The compact and rigid design allows for easy installation and operation leaving you more time to enjoy your pool.
• The reputable and durable 3-speed motor will ensure years of hassle-free pool maintenance in even the harshest of conditions.
• Backed by a 3 year warranty (2 years on the mechanical seal)
• You can be assured of many hassle-free years of use.

Suitable for domestic swimming pools up to 80,000 Litres.

Models Available: VS 1.0HP

Brochure

Product Manual

Spare Parts

The FloPro e3 controller has been specially designed for the FloPro e3. It is conveniently located on the motor of the pool pump ensuring ease of use.

The FloPro e3 comes standard with 3 preset speed, however, you have the ability to adjust these speeds to customize the optimum flow (or RPM) for your pool application.

FloPro e3 controller features:

3 Preset Speed Settings

• Eco Mode: 1900 RPM
• Clean Mode: 2150 RPM
• Boost Mode: 2850 RPM

Variable Speed Selection Settings

• Press & hold each button for 5 seconds will switch to speed Adjust Mode (50 RPM per step).
• Press and hold 3 speed buttons for 5 seconds will reset all speeds to default.

FloPro e3 Performance

The shaded performance curve illustrates the ability of the pump to deliver varying flow rates at a variety of different speed settings.

The main factor that determines how much flow is delivered from your pump is the amount of restriction (friction) in the line.  This is represented in head and measured in metres.

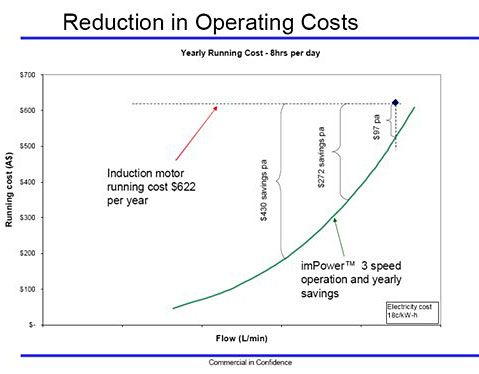

Save Energy, Save Money

With 3 preset speeds and the ability to adjust these speeds with a simple touch of a button you can save up to 60% in energy costs.

In most installations, it will have a payback of around 3 years versus a standard single speed pump*.

Running the filtration (pump) equipment for longer periods at lower speeds will reduce power consumption significantly.  For example, if the speed is halved, the flow output is halved, and the power consumption drops to one quarter.  Even at 50% RPM, the FloPro e3 can still turn over 50,000 litres in 4 hours.

Zodiac FloPro ePump Specifications

ImPower Motor

• Patented technology
• 3-speed operation (factory setting)
• Integrated electronics
• Mount to existing pumps

Technical Specifications

• Output power max. : 1.0 HP
• Speed range: 1000-2850 RPM
• Voltage: 230 V
• Bearing system: ball bearings
• Axial flux PM design
• Compact design: length 211 mm including electronics
• TEFC construction
