Davey's ProMaster VSD200 ECO - The Super Quiet Innovative Pool Pump

APPLICATIONS

Ideal for swimming pool applications such as:

  • Filtration
  • Suction & in-floor pool cleaning system
  • Backwashing
  • Water features
  • Spa jet operation
  • Solar pool heating
  • Gas and heat pump spa & pool heating

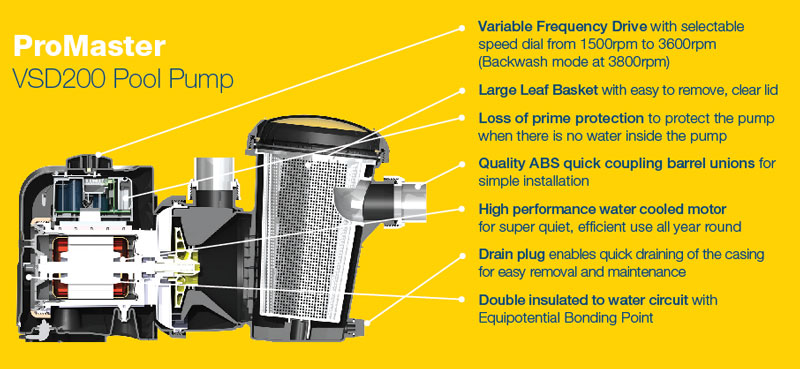

WHY CHOOSE THE INNOVATIVE ProMaster® VSD ECO Series pump?



  • Fully Variable Speed Control - The ProMaster® offers the pool owner and operator total control over the speed at which the pump needs to operate, from 1,500rpm to 3,600rpm.
  • Super Quiet - Designed with a unique water-cooled motor which captures noise and vibrations, allowing super-quiet operation, rated down to 50 dBa at speed 1. Your neighbours won’t even know it’s there.
  • Backwash Function - ProMaster® is designed with a selectable backwash cycle that runs the pump for 2 minutes at 3,800rpm before shutting down. It provides for safe, reliable and easy operation of the pump when backwashing your media filter.
  • Dependable - ProMaster® incorporates unique loss of prime protection to minimise pump damage if no water is available to the pump.
  • Convenient - By water-cooling the motor, ProMaster® does not require air ventilation, and gives installers more flexibility with pump positioning.
  • Easy to install set and operate, no complicated digital push button controls
  • Automatic restart technology
  • Large 4.5 litre leaf basket for long intervals between cleaning
  • Over temperature derating, pump will automatically slow down in high ambient temperatures
* Note 50dBa noise rating is at the pump running at speed 1.







ProMaster VSD200 Brochure

ProMaster VSD200 Installation and Operating Instructions



Model No.   Speed Setting Input Output  Nom Speed (RPM)  Duty Point  Flow Rate
hp W hp W
PM200SV          Dial 1 0.17 128 0.12 90 1500  2.1 107.5 lpm
Dial 2 0.28 207 0.19 145 1900  3.0 130 lpm
Dial 3 0.39 293  0.28  205  2200  4.1  151 lpm
Dial 4 0.53 398  0.37  279  2450  5.2  169 lpm
Dial 5 0.70 524  0.49  367  2700  6.4  188 lpm
Dial 6 0.88  655  0.61  459  2950  7.5  205 lpm
Dial 7 1.08  807  0.76  565  3200  8.6  220 lpm
Dial 8  1.26  936  0.88  655  3350  9.7  232 lpm
Dial 9  1.45  1078  1.01  755  3500  10.7  244 lpm
Dial 10  1.49  1111  1.04  778  3600  11.0  247.5 lpm
Backwash 1.77  1320  1.24  924  3800  12.3  261 lpm
