 Gear Set Part Codes |
 |
 |
A U0018
QuikClean Standard “Ball’’ Water Valve 6 Port
Kit C
(Includes Impeller, Gear Plate, Centre Shaft, Cam, O Ring,
2 x Anti-Friction Washers) |

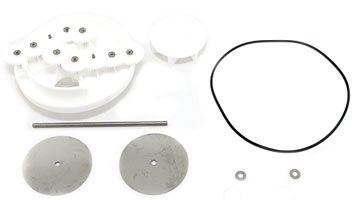

B U0039
QuikClean In Floor Cleaning System 6 Port
"Low Profile" Tsunami Water Valve Replacement Parts Kit
(Includes 40 mm & 50 mm Impeller, Assembled Gear Plate,
Center Shaft, Cam, O-Ring & 2 Anti-Friction Washers) |
| |
|
 |
 |
C U0040
QuikClean In Floor Cleaning System 6 Port
"Low Profile" Retro-Fit Kit Complete
(Includes Impeller, Assembled Gear Plate,
Center Shaft, Cam, O-Ring, 2 Anti-Friction Washers,
2 Shims, 6 Tsunami valves, Elevation Tool & Adhesive) |

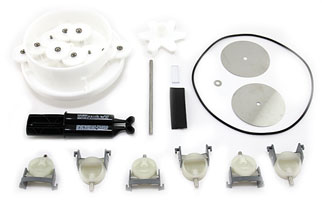

D U0041
QuikClean InFloor System 6 Port Standard Retro Fit Kit
(Includes Impeller, Assembled Gear Plate, Center Shaft,
Cam, O-Ring, 2 Anti-Friction Washers, 1 Shim, 6 Tsunami valves,
Elevation Tool & Adhesive) |
| |
|
 |
 |

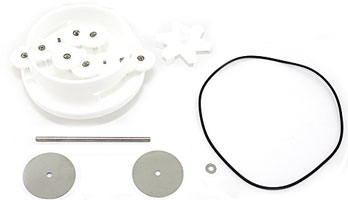

E U0042
QuikClean InFloor Cleaning System KIT B
(Includes 5 Port Valve Impeller,Assembled Gear Plate,
Center Shaft, Cam, O-Ring & 2 Anti-Friction Washer) |

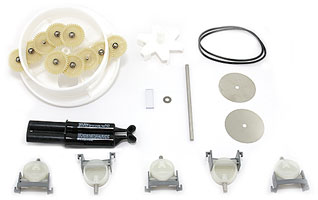

F U0043
QuikClean InFloor Systems 5 Port "Standard" Retro-Fit Kit Complete
(Includes Impeller, Assembled Gear Plate, Center Shaft,
Cam, O-Ring, 2 Anti-Friction Washers,1 Shim, 5 Tsunami Valves,
Elevation Tool & Adhesive) |
| |
|
 |
|
G U0101
QuikClean InFloor Cleaning System 6 Port
Standard Tsunami Water Valve Kit
(Includes 40mm Impeller, Assembled Gear Plate,
Centre Shaft, Cam, O Ring & 2 Anti-Friction Washers 540269) |
|
| |
|
|
|
 |
 |
 |
 |
1 U0002 |
2 U0003
|
3 U0016 |
4 U0017 |
QuikClean Infloor Cleaning System
QuikStop Pause Control |
QuickClean Infloor System
Water Valve O Ring Genuine |
QuikClean Infloor Cleaning System
Seal Plate Leaf Vac with Lock 522491 |
QuickClean InFloor System LeafVac Debris Canister Old Model Deck Lid Tan |
| |
|
|
|
 |
 |
 |
  |
| 5 U0025 |
6 U0044 |
7 U0045 |
8 U0046 |
QuikClean Infloor Cleaning System
Leaf Vac Debris Bag Mesh |
High Flow Head Internal only Tan suit QuikClean S2 |
QuikClean InFloor Cleaning System
Cleaning Head Internal Only
Grey 521666 |
QuikClean Infloor Cleaning System
High Flow Cleaning Head Internal Only
White series 2 521682 |
| |
|
|
|
 |
 |
 |
  |
| 9 U0047 |
10 U0048 |
11 U0049 |
12 U0053 |
QuikClean InFloor Cleaning System
Low Flow Cleaning Head
Internal Only
Grey series 2 |
Low Flow Head Internal only Tan suit QuikClean S2 |
QuikClean InFloor Cleaning System
Low Flow Cleaning Head Internal Only
White series 2 522010 |
QuikClean InFloor Cleaning System
Cleaning Head Internal Only
White series 521551 |
| |
|
|
|
 |
 |
 |
 |
13 U0054 |
14 U0055 |
15 U0089 |
16 U0090 |
| High Flow Head Internal only Black suit QuikClean S1 |
High Flow Head Internal only White suit QuikClean S1 |
QuikClean InFloor Cleaning System
Head Tool MK1 Prong
(1993 Prior 2 Prong) |
Quikclean Gamma Head Installation Tool Plastic 547508 45mm |
| |
|
|
|
 |
 |
 |
 |
17 U0091
|
18 U0092
|
19 U0096 |
20 U0109
|
QuikClean InFloor Cleaning System
Head Removing Tool MKll 3 Prong
(1993/2003) |
QuikClean InFloor Cleaning System
Leaf Vac Basket |
QuickClean Infloor System Valve Top Entry Speed Control with 4 Screws |
QuikClean InFloor Cleaning System
Upper Housing with Speed Control & Diverter 5 & 6 Port Standard Valves Only 522677 |
| |
|
|
|
 |
 |
 |
 |
21 U0113
|
22 U0140 |
23 U0177 |
24 U0180 |
QuikClean 5 & 6 Port Standard Stainless Steel Band Clamp for Low Profile Side Entry Valves only 540146
Diamenter 237, Thickness 28mm OD & Thickness ID 20mm |
QuikClean InFloor Cleaning System Low Flow Cleaning Head Internal Only Grey series 2 522010 |
QuikSkim Venturi Skimmer Basket
Filter Sock |
QuickClean InFloor System LeafVac Debris Canister Lid |
| |
|
|
|
 |
 |
 |
 |
| 25 U0291 |
26 U0151 |
27 U0152 |
28 U0153 |
| G4v High Flow Head Internal – Blue To Suit Quikclean Infloor Cleaner |
G3 High Flow Head Internal – Black To Suit Quikclean Infloor Cleaner |
G4v High Flow Head Internal – Gold To Suit Quikclean Infloor Cleaner |
G3 High Flow Head Internal – Grey To Suit Quikclean Infloor Cleaner |
| |
|
|
|
 |
 |
Photo to come |
 |
| 29 U0154 |
30 U0155 |
31 U0157 |
32 U0180A |
G3 High Flow Head Internal – Tan To Suit Quikclean Infloor Cleaner
No Longer Available |
G3 High Flow Head Internal – White To Suit Quikclean Infloor Cleaner
|
G3 Low Flow Head Internal – Gold To Suit Quikclean Infloor Cleaner
No Longer Available
|
QuickClean InFloor System Leafvac Locking Ring |
| |
|
|
|
|
 |
 |
|
| 33 U0181 |
34 U0207 |
35 U0243 |
36 U0273 |
QuickClean Infloor System
Leaf Vac Lid O-Ring |
QuickClean InFloor System G3/G4V Head Installation Tool Metal |
QuickClean InFloor System LeafVac Debris Canister Union Set |
QuikClean 5 & 6 Port Standard Stainless Steel Band Clamp for Top Flow Water Valves only 518109
Diamenter 239, Thickness 25mm OD & Thickness ID 19mm |
| |
|
|
|
| |
|
