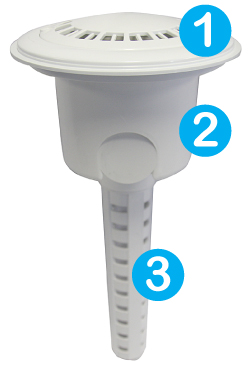

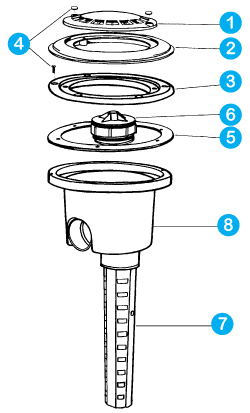

Onga Quiptron Hydrostatic Relief Valve Assembly |
 |
|
 |
| Code |
Description |
Diagrame Number |
|
Code |
Description |
Diagrame Number |
| 5318000 |
Main Drain Dress Ring with Cover White only |
1 |
|
5317300 |
Cover (Included with Items 2 & 3) |
1 |
| 5317900 |
Quiptron Main Drain Body Hydro Valve only |
2 |
|
5318000 |
Main Drain Dress Ring with Cover White only |
2 |
| 5163900 |
Quiptron Main Drain Body Pilot Tube
|
3 |
|
5318100 |
Dress Ring (Vinyl or Fibre Glass) |
3 |
| |
|
|
|
5317500 |
Screw & Plug Pack |
4 |
| |
|
|
|
5317700 |
Gasket |
5 |
| |
|
5163400 |
Hydrostatic Relief Valve 50mm |
6 |
| |
|
5163900 |
Quiptron Main Drain Body Pilot Tube |
7 |
| |
|
5317800 |
Body with Hydrostatic Valve |
8 |
