blank image Filters > Replacement Cartridge Filter (A-H)
blank image


Replacement Cartridge Filter (A-H)
Brands Are Shown In Alphabetical Order, Please Click On The Categories you're looking for: A - H J - P Q - Z

Code Description Height
(mm)		 O.D
(mm)		 Hole
Size
AIM045 Aaim 280 127 45




Aquaswim (L → R)
Code Description Height
(mm)		 O.D
(mm)		 Hole
Size
1 AQC075 Aquaswim / Spa-Quip C75 compact 452 155 50
2 AQ75 Aquaswim / Spa-Quip AS/SQ CF75/C700 555 183 75
3 AQ100 Aquaswim / Spa-Quip Aquaswim CF100/C950 735 183 75
4 AQ150 Aquaswim / Spa-Quip Spa Quip CF1500 Requires 2 455 183 75
5 AQ375 Aquaswim / Spa-Quip AQ/SQ 50sq/ft compact 305 155 50

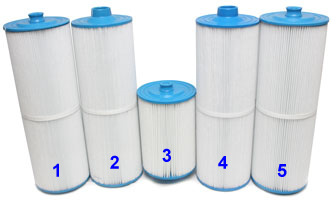

Baker Hydro (L → R)
Code Description Height
(mm)		 O.D
(mm)		 Hole
Size
1 BH150T Baker Hydro HM150 Top 495 180 50
2 BH150B Baker Hydro HM150 Bottom 495 180 50
3 BH25 Baker Hydro HM25 250/310 168 41
4 BH100B Baker Hydro HM100 Bottom 500/525 168 41
5 BH100T Baker Hydro HM100 TOP 500/525 168 46

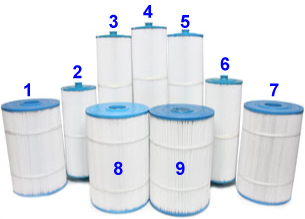

Bowman / Paramount Code Description Height
(mm)		 O.D
(mm)		 Hole
Size
Front (L → R)
8 PBO150 Paramount/Bowman Opal 150 439 273 76
9 PBO85 Paramount/Bowman Opal 60/85 435 275 77
Back (L → R)
1 PBO110 Bowman / Paramount Opal 110 440 275 77
2 C0780 Bowman Hydroflo BC80 7 sq mtr 515 178 40
3 CO7160 Bowman Hydroflo BH160 767 178 40
4 BH7110 Bowman Hydroflo BH110 804 178 40
5 CO130 Bowman Hydroflo BH130 706/766 180

30
6 C0785 Bowman Hydroflo C85 555 178 40
7 PBO135 Paramount/Bowman Opal 135 Genuine 441 260 75

Compu (L → R)
Code Description Height
(mm)		 O.D
(mm)		 Hole
Size
1 22221 Compu CF75 Genuine 545 183 77
2 22223 Compu CF100 Genuine 702 184 80
3 22224 Compu CF150 Genuine 902 184 78

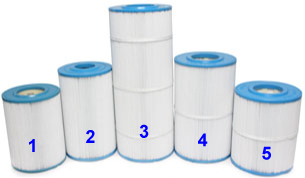

Davey (L → R)
Code Description Height
(mm)		 O.D
(mm)		 Hole
Size
1 S2310 Davey CF500 275 230 100
2 D230 Davey Mytilus 230 356 203 76
3 S2313 Davey CF1500 570 230 100
4 S2312 Davey CF1000 383 230 100
5 S2311 Davey CF750 283 230 100


DE to Conversion (L → R)
Code Description Height
(mm)		 O.D
(mm)		 Hole
Size
1 FG10/50 FG 10/50 Conversion 258 257 30
2 FG18/50 FG18/50 Conversion 525 184 30
3 FG20/100 FG20/100 Conversion 456 257 30


Dimension
Code Description Height
(mm)		 O.D
(mm)		 Hole
Size
DIM036 C36 for Ozone 385 104 40/23










Finsbury / Vortex (L → R)
Code Description Height
(mm)		 O.D
(mm)		 Hole
Size
1 FS800 Finsbury/Vortex Splasher 800 119 136 47
2 F100 Finsbury/Vortex C100 503 206 46
3 F50 Finsbury/Vortex C50 495 183 46




Filtrite
Code Description Height
(mm)		 O.D
(mm)		 Hole
Size
FCT5000 Filtrite Turbo 5000 373 123 55




Filtermaster - Davey (Old Style) (L → R)
Code Description Height
(mm)		 O.D
(mm)		 Hole
Size
1 FC50 Filtermaster C50 483 185 76
2 FC75 Filtermaster C75 718 185 76




Hayward ex USA (L → R)
Code Description Height
(mm)		 O.D
(mm)		 Hole
Size
1 HAY250 Hayward C250 249 178 77
2 CX1100RE 100 sq ft. Hayward C1100 592 216 103
3 HAY750 Hayward C750 750 177 77
4 HAY500 Hayward C500 500 177 77
5 HAY120 Hayward C120 300 118 52
6 HAY225 Hayward C225 300 118 52



Heritage SPA
Code Description Height
(mm)		 O.D
(mm)		 Hole
Size
HER050 Heritage Spa 50 Sq Ft 240 153 38





Hot Springs (L → R)
Code Description Height
(mm)		 O.D
(mm)		 Hole
Size
1 HOT25 Hot Springs C25 258 154 50
2 HOT50 Hot Springs C50 263 205 76

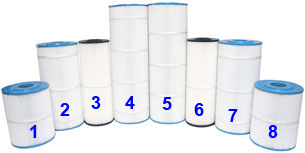

Hurlcon (L → R)
Code Description Height
(mm)		 O.D
(mm)		 Hole
Size
1 HZX050 Hurlcon ZX50 288 230 75
2 HZX100 Hurlcon ZX100 488 230 75
3 HL50 Hurlcon C50 246 180 78
4 HZX250 Hurlcon ZX250 688 230 75
5 HZX200 Hurlcon ZX200 688 230 75
6 HL75 Hurlcon C75 504 180 78
7 HZX150 Hurlcon ZX150 488 230 75
8 HZX075 Hurlcon ZX75 288 230 75

Brands Are Shown In Alphabetical Order, Please Click On The Categories you're looking for: A - H J - P Q - Z
