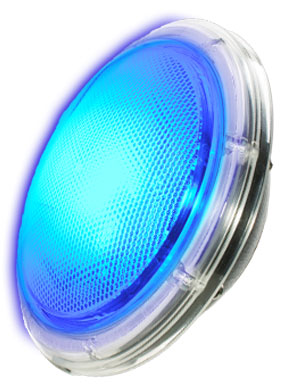

Spa Electrics AU56 |
|
- Simple replacement of your existing Par56 lamps or Filtrite lights
- High intensity Ceramic Light Engine (LED) Technology
- L.E.D. life of 50,000hrs (rated)
- Kind to the environment, operating on approximately 88% less energy than a normal 100watt halogen light
- Available in Multi-colour or Single Colour versions
- 12Volt AC operating voltage
- External Heat sink allows for superior LED cooling
- Designed and manufactured in Australia
- IPX8 waterproof rating
 Brochure Installation Manual Photometrics
|
|
|
|
|
|
| Light Sources: |
Ceramic Light Engine (LED) |
Lens Options: |
N/A |
| Colour: |
White (4000 K typical)
Blue (465 nm)
Green (525 nm)
RGB (Multi-colour)
|
Rim Options: |
N/A |
| Globe Life (Lumens Maintenance): |
70% @ 50,000 hrs |
IP Rating: |
IPX8 |
| Construction: |
UV Stabilised Polycarbonate
External Heatsink
|
Installation Types: |
Suits All PAR56 Type Housings |
| Voltage: |
12v AC |
Current: |
1.0 A |
| Wattage: |
12W |
Warranty: |
12 Month Manufacturer's Warranty |
| Cable Specifications: |
N/A |
Standard Inclusions: |
316 Marine Grade SS Fasteners
Thermal Protection |
| Recommended Transformer: |
LV25 (Single Light)
LV50 (Dual Lights) |
Ambient Operating Temperature: |
5 °C to +40 °C |
| Return to Top |
| |
|
|
|
| CODES |
DESCRIPTIONS |
FURTHER INFORMATION |
| AU56 SINGLE |
1 SINGLE COLOUR RETRO LIGHT + GASKET FOR FILTRITE OR PAR56 |
Colours Available: Blue, White, Green |
| AU56 MULTI |
1 MULTI COLOUR RETRO LIGHT + GASKET FOR FILTRITE OR PAR56 |
Multi-coloured 12V |
