Ideal for the average sized pool, the P320 eVo has a flow rate sufficient to back wash up to 30" or 800mm diameter sand filters, provide a powerful vacuum when cleaning the pool and drive up to 6 spa jets. The large liquid crystal display clearly shows the RPM of the motor and enables adjustment of the start up priming time, priming flow rate, and visual display of each speed setting. The inbuilt 24 hour timer is easily enabled and provides up to four time periods each day with different speed settings to provide the perfect flow rate for your pool.
Please refer to the product brochure and operating manual for the product specifications and warranty.
Features and Benefits
- Fully variable speed from 600 RPM to 2850 RPM allows flow rate to be tailored to your pool while maximising energy savings
- 8 star energy rating
- Reduced CO2 emissions
- Low speeds means ultra quiet allowing operation at night or early morning
- Low speed means lower pressures extending the life of other pool equipment such as filters and chlorinators
- Low speed means better filtration resulting in sparkling clear water
- Programmable time periods and speed means suitable for water features, spa jets and in floor cleaning systems
- Fully serviceable motor to ensure long life and maximum energy savings over the life of the pump
- Save up to $1000 per year in operating costs
 Viron P320 eVo Pump Brochure
Viron P320 eVo Pump Technical Manual
Spare Parts Diagram
|
|
For the technically minded:

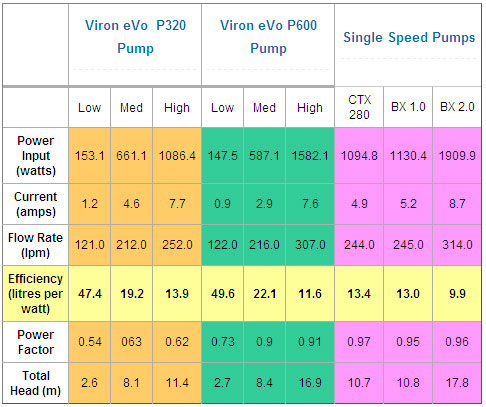

The highlighted yellow row in the table represents the total number of litres pumped per watt of energy used. Each Viron eVo pump is tested at factory preset speeds but each speed, (low, medium and high) can be changed to suit your individual swimming pool application.
For purposes of comparison, the Viron P280 eVo has a similar flow rate on maximum speed to the AstralPool single speed CTX 280, the Viron P300 eVo on maximum speed compares closely with the BX 1.0hp, and the Viron P600 eVo on maximum speed compares closely with the BX 2.0hp single speed pump. Total head represents the total friction losses of both inlet pipe to the pump and return to pool plumbing, fittings and equipment. Note how the pump efficiency measured in litres per watt dramatically improves on lower speeds. |
