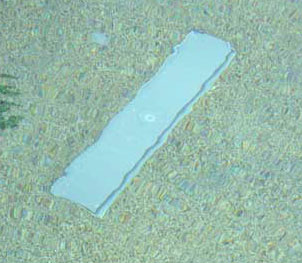

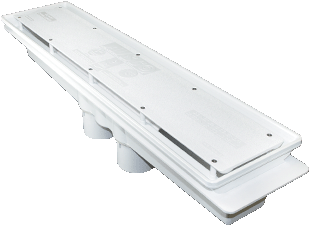

AVSC Drain (Anti-Vortex Single Channel Drain)

  • Engineered to meet the Unblockable category (Safest design on the marketplace) as allowed in ANSI/APSP 7 Standard.
    • Get peace of mind with our maximum safety drain that also cleans your pool.  This allows you to install one drain instead of two as allowed for in the regular standards.
  • Available in two models, Single & Dual inlet models with flow rates up to 227 GPM.
    • The AVSC Drain allows you to plumb not only one pump, but two pumps if needed to one drain.  Think of the Savings!
  • Designed with a flush large opening for debris removal.
    • Most other VGB certified drains are for circulation only.  Unlike how the AVSC Drain is “flush” with the finish of the pool, all other debris removal drains extend significantly above the finish.  The large opening in the AVSC Drain does allow for even the largest of debris to pass into the drain.
  • Engineered with Dual Levels of Protection
    • Unlike other certified drains, the AVSC Drain is designed with its Safety Baffle.  This is a second level of protection keeps the swimmer from being able to come into contact with the suction inlet in the event the cover is broken or missing (the cause of most entrapment cases).  Safety is our primary concern!
  • NSF International certified to meet the VGB Pool & Spa Safety Act ASME/ANSI 112.19.8a 2008.


    Installation Instruction for Concrete

    Installation Instruction for Vinyl

Code Description
U0203 Channel Drain Single suction Grey
U0215 Channel Drain Dual suction Grey
U0216 Channel Drain Single suction Black
U0217 Channel Drain Dual suction Black
U0218 Channel Drain Single suction Gold
U0219 Channel Drain Dual suction Gold
U0204 Channel Drain Single suction white
U0220 Channel Drain Dual suction white
U0228 Channel Drain Dual suction Blue
U0229 Channel Drain Single suction Blue
For Concrete Pool Only
Code Spare Parts
U0143 Hydrostatic Valve
U0144 Stem
U0249 AVSC Channel Drain Top Grey
U0248 AVSC Channel Drain Top White
U0263 AVSC Channel Drain Top Black
U0264 AVSC Channel Drain Top Gold
U0255 AVSC Channel Drain Colour Change Insert Grey
U0256 AVSC Channel Drain Colour Change Insert White
U0261 AVSC Channel Drain Colour Change Insert Black
U0259 AVSC Channel Drain Colour Change Insert Gold
U0257 AVSC Channel Drain Screw Set
(10 Screws & Torx Driver Tip)
